Operating Instructions

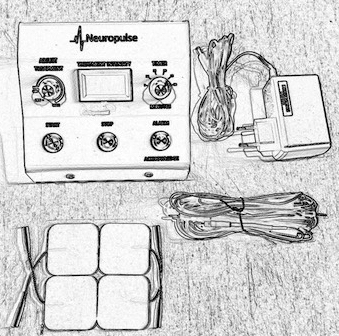

1.  CONTENTS

a. 1 x Neuropulse MC-01 Device

b. 1 x 12V Power Supply

c. 2 x Electrode Leads

d. 4 x Electro pads

e. 1x High Quality Canvas Carry Bag

3.1 Remove contents from Neuropulse Bag

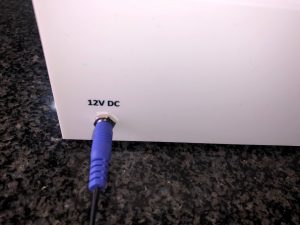

3.2 Connect the Neuropulse MC-01 device to the 12V Power Supply and the Power Supply to an Electricity Source.

3.3 Connect the Electrode Leads to the Neuropulse Device

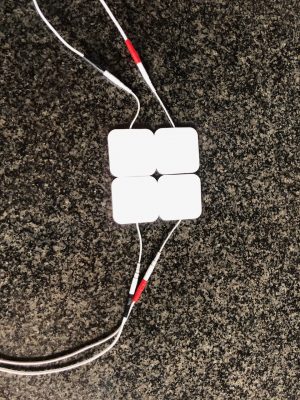

3.4 Connect the Electrode Leads to the Electrode Pads

3.5 Peel the electrode pads from their protective plastic shield by holding and lifting one corner of the pad and pulling

3.6 Place the Electrode Pads on the area to be treated

3.7 Set the Timer to the required treatment time

3.8 Switch "ON" the Neuropulse Device

3.9 Press the "START" Button to start the treatment and the timer

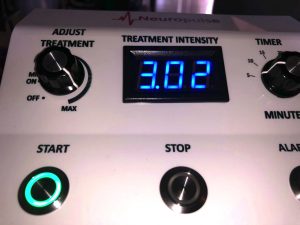

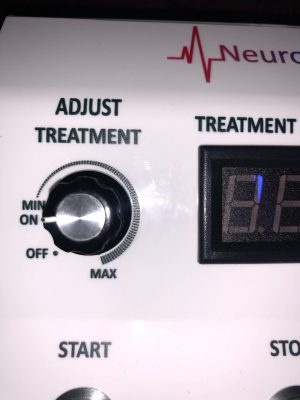

3.10 Adjust Treatment Intensity to a comfortable level

3.11 To Stop the Treatment before the Timer runs out press the "STOP" Button

3.12 When the Timer runs out or if the STOP Button is pressed an Audible Alarm will Sound and the "ALARM ACKNOWLEDGE" Light will flash. Press the "ALARM ACKNOWLEDGE" Button to silence the Alarm.

3.13 The Treatment is now complete and the Neuropulse Device can be switched OFF.
